Flexible Water Storage Bag Fabric

Flexible Water Storage Bag Fabric

Water bag fabric is widely used for water storage bags, loading test water bags for bridges, platforms, railways, floors, elevators, and swimming pools, fishponds etc.


Product Detail

Product Tags

Product Informations

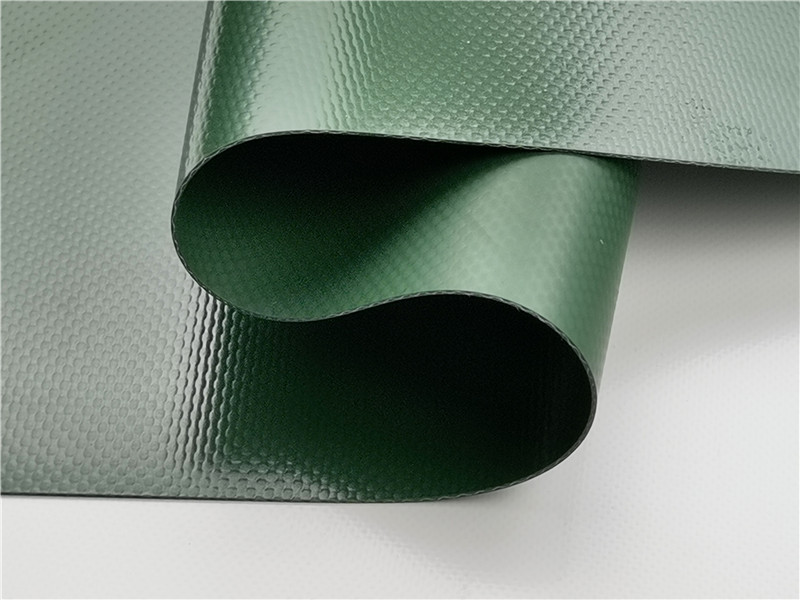

Water bag fabric is made of high-strength industrial polyester fibers and PVC membranes through a laminating process. It can be used for both enclosed water bags and open-top water bags for different purposes.

 Product Parameters

Biogas Bag Fabric Technical Specification
Item Unit Model Executive Standard
ZQ70 ZQ90 ZQ120 SCYY90
Base fabric Denier High strength low shrink polyester fiber DIN EN 60001
Color - Red mud, Blue, Army green, White -
Thickness mm 0.7 0.9 1.2 0.9 -
Width mm 2100 2100 2100 2100 -
Tensile strength (warp/weft) N/5cm 2700/2550 3500/3400 3800/3700 4500/4300 DIN 53354
Tear strength (warp/weft) N 350/300 450/400 550/450 420/410 DIN53363
Adhesion strength N/5cm 100 100 120 100 DIN53357
UV protection - Yes -
Threshold Temperature -25~60 DIN EN 1876-2
Acid and alkali corrosion resistance 672h Appearance no blistering, cracks, delamination and holes FZ/T01008-2008
Tensile load retention rate ≥90%
Cold resistance (-25℃) No cracks on the surface
The above values are average for reference, allowing 10% tolerance. Customization is acceptable for all given values.

 Product Feature

◈ Anti-aging
◈ UV protection
◈ High pressure resistance
◈ Excellent airtightness
◈ Strong weather resistance
◈ Excellent heat absorption
◈ Fire resistance
◈ Long life span
◈ Simple to set up
◈ All characters can be customized to fit the needs of the various user environments.

Product Advantages

Foresight has more than 15 years of experience in the production of red mud biogas fabric, a strong scientific research team, more than ten engineering and technical personnel graduated from professional colleges, and more than 30 high-speed rapier looms to meet various needs. with an annual output of more than 10,000 tons of various types of calendered films and an annual output of more than 15 million square meters of fabrics.

1
2

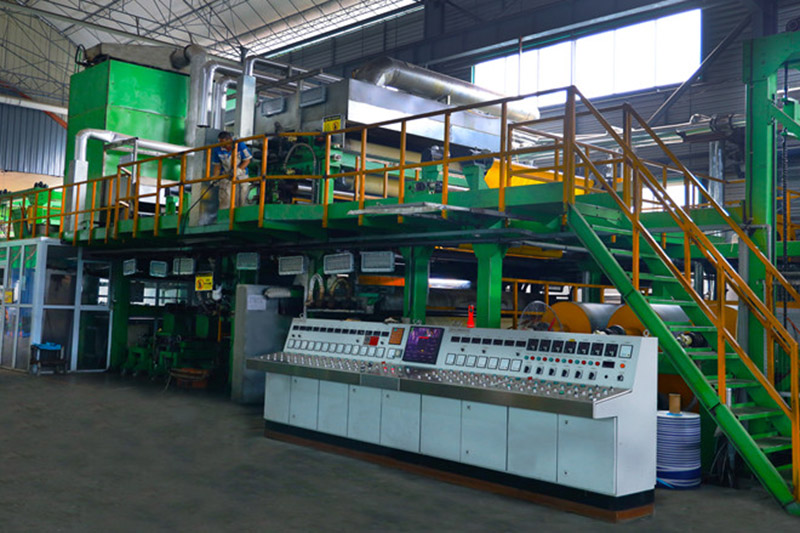

From raw materials such as fiber and resin powder to PVC flexible fabric, Foresight has a complete industrial chain.The system has obvious advantages. The production process is controlled layer by layer and comprehensively balances all key indicators, which can be customized according to the customer’s requirements in different environments. We are committed to providing users with the safest and most cost-effective solutions.

The water bag fabric adopts red mud material, which has better UV-resistant, light-resistant, anti-corrosion, and anti-oxidation performance than ordinary fabric. It is suitable for areas with large temperature differences between day and night and strong outdoor UV. It has good weather resistance and extends the life of biogas digesters by 5–10 years.

3
4

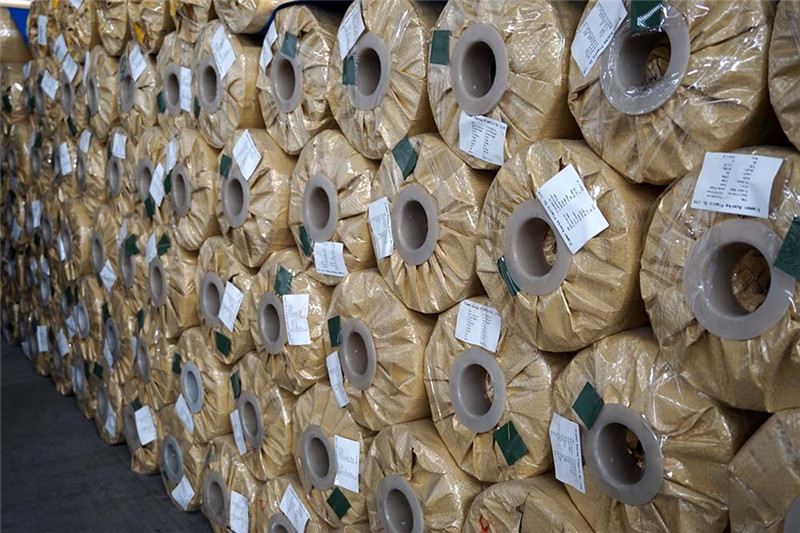

The water bag fabric is light in weight, easy to transport.

Chengdu Foresight Composite Co., Ltd. was founded in 2006 and has assets worth more than CNY 100 million. It is a full-service composite material company that provides everything from base fabric, calendered film, lamination, semi-coating, surface treatment, and finish product processing to engineering design and on-site installation technical support. Tunnel and mine ventilation duct materials, PVC biogas engineering materials, construction tent materials, vehicle and ship tarpaulin materials, special anti-seepage engineering and storage containers, materials for liquid storage and water tightness, PVC inflatable castles, and PVC water amusement facilities are among the products used in industries such as security, environmental protection, infrastructure, entertainment parks, new building materials, and others. Products are sold in Europe, America, the Middle East, Southeast Asia, Africa, and other countries and areas through product sales outlets located throughout the country.
